What Are Cyanine Fluorophores?
Cyanine fluorophores are a class of synthetic dyes characterized by a polymethine chain flanked by two nitrogen-containing heterocycles, typically indoles, benzothiazoles, or quinolines. The polymethine bridge, composed of alternating single and double carbon bonds, serves as the conjugated π-electron system that dictates the absorption and emission properties of the fluorophore. Chain length and substituents on the heterocyclic rings modulate the photophysical properties, enabling fine-tuning across the visible to near-infrared (NIR) spectrum. Structurally, cyanines are denoted as Cy3, Cy5, Cy7, etc., where the numeral reflects the number of carbon atoms in the polymethine bridge and, consequently, the emission wavelength.
Fig.1 Chemical structures of cyanine fluorophores[1].
The electron-donating and withdrawing nature of substituents on the heterocycles can improve solubility, enhance quantum yield, and increase photostability. The introduction of sulfonate groups raises aqueous solubility levels, while PEGylation decreases non-specific binding and improves biocompatibility. The creation of modular chemical frameworks has made cyanine dyes essential components for fluorescence imaging alongside nucleic acid labeling and bioanalytical chemistry applications.
How Are Cyanine Dyes Synthesized?
The synthesis of cyanine fluorophores involves condensation reactions between quaternized heterocyclic salts and active methylene compounds under controlled pH and temperature. Modern methods prefer using microwave-assisted techniques or eliminating solvents to boost yields while minimizing reaction durations. For instance, the synthesis of Cy5 often involves the condensation of 2,3,3-trimethylindoleninium iodide with malonaldehyde bis(phenylimine) dihydrochloride under acidic catalysis. Alkyl or sulfonate substitution occurs at the N-positions to render the final dye water-soluble and reactive for bioconjugation.

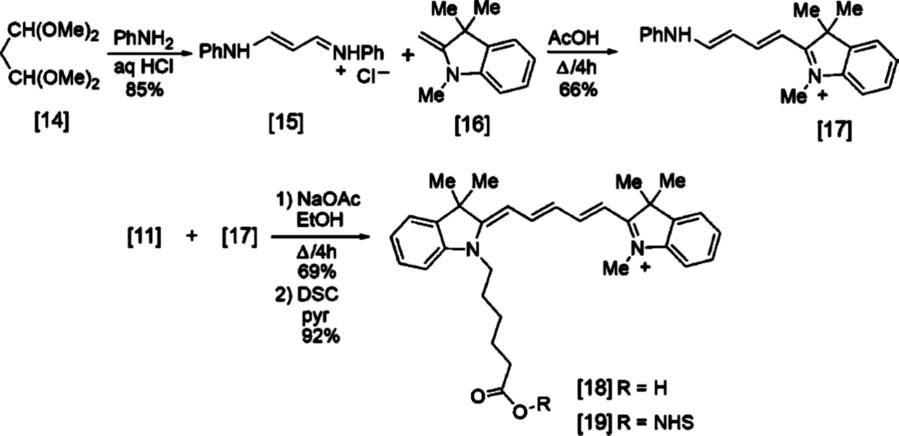

Fig.2 Synthesis of the methyl Cy5 dye and its NHS ester[2].
Functional versatility in cyanine fluorophores is commonly enhanced through derivatization with functional groups including NHS esters, maleimides, azides, and alkynes. These functional groups allow biomolecules to be conjugated precisely through amine-based reactions or thiol interactions and click chemistry techniques. Alfa Chemistry also provides custom synthesis services for cyanine dyes, offering tailored conjugates suitable for oligonucleotide labeling, antibody tagging, and high-throughput screening platforms.
What Are the Optical Properties of Cyanine Fluorophores?
Cyanine fluorophores exhibit sharp and intense absorption and emission peaks, large Stokes shifts (particularly in longer-chain derivatives like Cy7), and relatively high molar extinction coefficients (ε typically in the range of 150,000 - 250,000 M-1cm-1). The quantum yield, defined as the ratio of emitted to absorbed photons, ranges from 0.1 to 0.3 for most cyanines, although modifications can elevate these values.
Fig.3 Absorbance (dotted) and fluorescence (solid) spectra of cyanine dyes[3].
One of the defining traits of cyanines is their tunable spectral range. Cy3 emits in the orange-red region (~550 - 570 nm), Cy5 in the far-red (~670 nm), and Cy7 in the NIR region (~780 nm), making them ideal for multiplex fluorescence imaging. However, longer polymethine chains exhibit decreased photostability due to increased susceptibility to photooxidation and cis-trans isomerization, which is mitigated by rigidifying the chain or incorporating electron-withdrawing groups.
| Dye | λmax Absorption (nm) | λmax Emission (nm) | Quantum Yield | Common Applications |
| Cy3 | ~550 | ~570 | ~0.15 - 0.2 | FISH, qPCR, flow cytometry |
| Cy5 | ~650 | ~670 | ~0.2 - 0.28 | Confocal microscopy, protein labeling |
| Cy7 | ~750 | ~780 | ~0.1 | In vivo NIR imaging, ICG alternatives |
What Applications Exist for Cyanine Fluorophores in Biological Imaging and Detection?
The high brightness and wide range of spectral properties make cyanine dyes essential for molecular diagnostics and bioimaging. The use of cyanine-labeled oligonucleotide probes in fluorescence in situ hybridization (FISH) allows for accurate detection of nucleic acid targets inside fixed cells and tissues. Real-time quantitative PCR (qPCR) benefits from the sensitive detection and quantification of nucleic acid sequences through dual-labeled probes, which emit fluorescence during amplification.
Fig.4 Oligonucleotide sequence design for 3′-Cy3 and Cy5 labeled single-stranded DNA[4].
During protein labeling procedures, cyanine dyes are attached to antibodies or streptavidin molecules to monitor cellular localization and trafficking and interaction partners through confocal or super-resolution microscopy. Live animal imaging and fluorescence-guided surgery benefit from far-red and NIR-emitting variants like Cy5.5 and Cy7 because they reduce tissue autofluorescence while enhancing imaging depth.
Fig.5 Using click reaction, antibody-cyanine fluorophore conjugates are generated[5].
Additionally, cyanine-labeled peptides and small molecules are employed in drug delivery and receptor binding studies, where signal-to-noise ratio and stability are paramount.
What Are the Challenges and Future Directions for Cyanine Fluorophores?
Although cyanine dyes are used extensively, they suffer from poor photostability and aggregation tendencies while also producing less brightness than emerging fluorophores such as Alexa Fluors or BODIPY derivatives. The occurrence of photobleaching during high-intensity illumination limits the effectiveness of cyanine dyes for long-term imaging applications. Fluorescence quenching occurs when the polymethine backbone of cyanines exhibits cis-trans isomerization due to its flexible structure.
The enhancement of cyanine dye performance requires structural stability through ring-locking techniques and protein-binding scaffold conjugation. The application of hydrophilic spacers and zwitterionic modifications demonstrates effectiveness in minimizing non-specific binding while improving biodistribution. Hybrid systems, such as cyanine-fluorinated nanoparticle complexes, are also emerging as high-performance fluorophores for in vivo diagnostics.
FAQs About Cyanine Fluorophores
Q1: What's the difference between Cy3, Cy5, and Cy7 dyes?
These refer to cyanine dyes with increasing numbers of methine units, resulting in different emission wavelengths: Cy3 (~570 nm), Cy5 (~670 nm), and Cy7 (~780 nm). Each is suited to specific imaging channels.
Q2: Why are cyanine dyes commonly used in fluorescence microscopy?
Their strong absorption, high brightness, and tunable emission spectra make them ideal for multicolor imaging and deep-tissue fluorescence applications.
Q3: Are cyanine fluorophores photostable enough for live-cell imaging?
Cy3 and Cy5 show moderate photostability; however, newer derivatives and protective formulations offered by companies like Alfa Chemistry improve their performance in live-cell environments.
Q4: Can I conjugate cyanine dyes to my own biomolecules?
Yes, cyanines are available with reactive groups like NHS esters, maleimides, or azides for easy conjugation to amines, thiols, or alkynes on biomolecules.
Q5: What's the advantage of near-infrared (NIR) cyanines like Cy7?
NIR cyanines penetrate tissues more deeply and exhibit less background fluorescence, which is ideal for in vivo imaging and diagnostics.
Q6: Where can I purchase high-quality cyanine dyes?
Alfa Chemistry offers a wide selection of functionalized cyanine fluorophores for research and development purposes, including custom synthesis and conjugation services.
References
- Gebhardt C., et al. Molecular and Spectroscopic Characterization of Green and Red Cyanine Fluorophores from the Alexa Fluor and AF Series. ChemPhysChem (2020).
- Jun M. E., et al. Synthesis and Validation of Cyanine-Based Dyes for DIGE. Methods in molecular biology (2012).
- Altman R. B., et al. Corrigendum: Enhanced photostability of cyanine fluorophores across the visible spectrum. Nature Methods (2012).
- Kekić T., et al. Sequence-dependence of Cy3 and Cy5 dyes in 3ʹ terminally-labeled single-stranded DNA. Scientific Reports (2022).
- Kovács D. S., et al. Effective Synthesis, Development and Application of A Highly Fluorescent Cyanine Dye for Antibody Conjugation and Microscopy Imaging. Org. Biomol. Chem (2023).
