Fluorinated Graphene: The Future of Dielectric Materials in Nanoelectronics
What Is Fluorinated Graphene?
Fluorinated graphene, often referred to as fluorographene, is a chemically modified derivative of pristine graphene wherein fluorine atoms are covalently bonded to the carbon lattice. The introduction of fluorine atoms into the graphene lattice fundamentally changes its electronic properties and dielectric behavior. Unlike pristine graphene, which is a zero-bandgap semimetal, fluorographene can function as an insulator, with tunable electrical behavior depending on its fluorination level. The bandgap of fluorinated graphene depends on its carbon to fluorine stoichiometric ratio and spans between 0.8 eV and 2.9 eV.

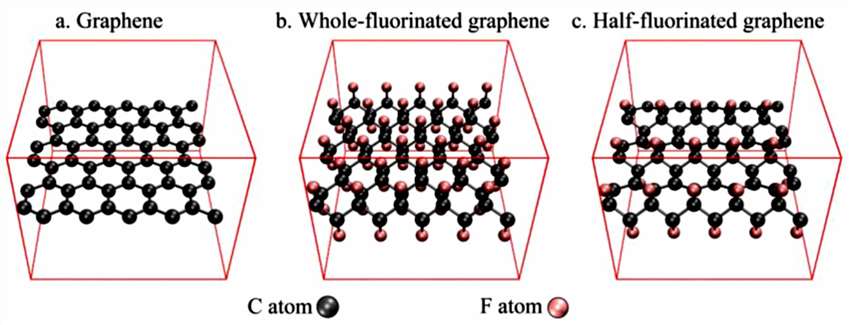

Fig.1 The structures of graphene, whole-fluorinated graphene and half-fluorinated graphene[1].
Shop our selection with confidence:
How Is Fluorinated Graphene Synthesized?
The synthesis of fluorinated graphene typically involves methods such as exposure to xenon difluoride (XeF2), plasma-assisted fluorination, or laser-induced fluorination of fluoropolymer-coated graphene. A particularly scalable and integration-friendly method involves low-damage CF4 plasma treatment of chemical vapor deposition (CVD)-grown graphene. This process incorporates a filter between the plasma source and the graphene layer, effectively minimizing damage from energetic radicals and UV radiation. Such controlled fluorination enables the direct fabrication of semi-metal/semiconductor/insulator heterojunctions using a single graphene sheet.

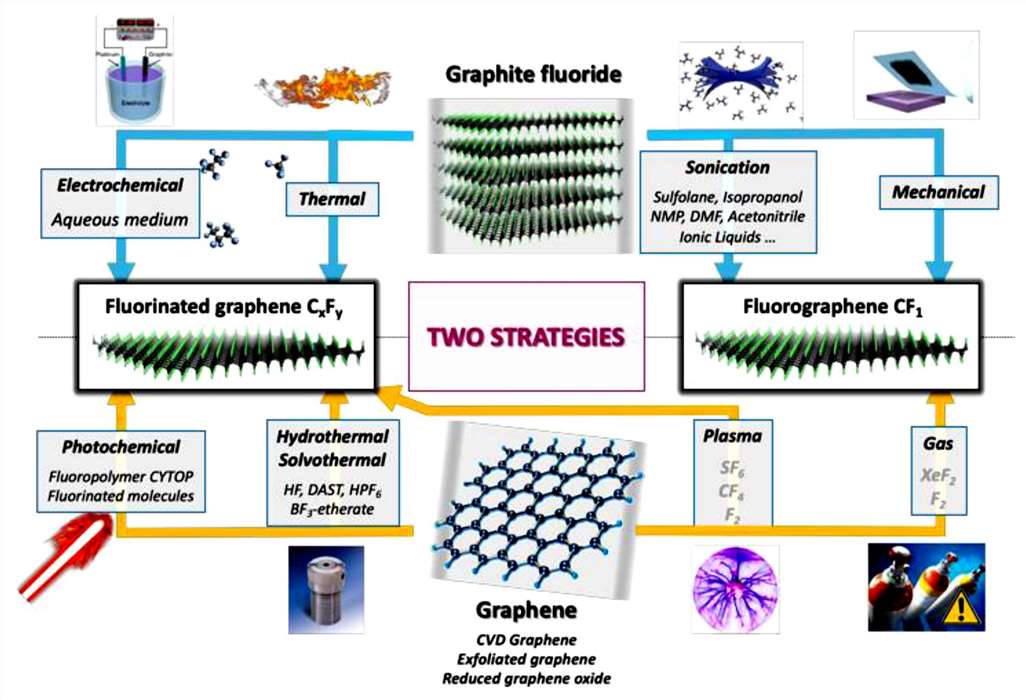

Fig.2 The two strategies for preparing fluorinated graphene of general composition CxFy and fluorographene with CF1 stoichiometry[2].
How Does Fluorinated Graphene Function as a Gate Dielectric?
One of the most promising applications of fluorinated graphene lies in its role as a gate dielectric material in field-effect transistor (FET) architectures. Traditional graphene-on-insulator FETs often employ SiO2 as the gate dielectric, but this approach introduces charge trapping at the interface and degrades carrier mobility. While atomic layer deposition (ALD) of high-k dielectrics like Al2O3 and HfO2 offers improvements, it still necessitates seed layers due to graphene's hydrophobicity. Furthermore, graphene oxide (GO), although frequently used in dielectric roles, suffers from poor thermal stability, reducing its dielectric resistivity.
In contrast, fluorographene presents several dielectric advantages. Multi-layer fluorinated graphene demonstrates a very low dielectric constant of approximately 1.2 while maintaining superior frequency dispersion characteristics and surpassing 10 MV/cm breakdown electric field strength, which matches or exceeds the performance of bulk dielectrics such as Si3N4 and SiO2. The material demonstrates exceptional thermal stability since its properties remain stable throughout thermal annealing processes reaching 400°C in ambient air conditions, which proves its outstanding thermal durability and dependability for semiconductor processing applications.

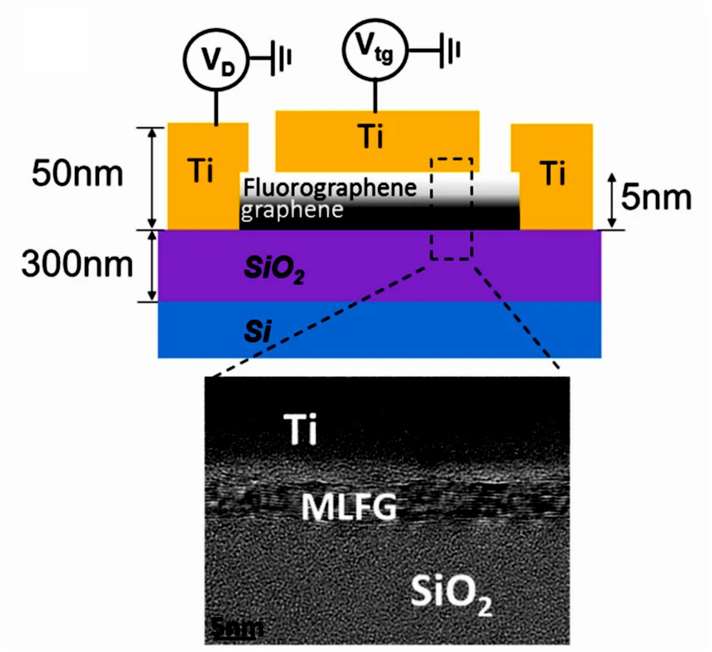

Fig.3 An illustration of a graphene-based FET composed of a fluorographene gate dielectric[3].
How Can Fluorinated Graphene Support Large-Scale IC Integration?
Large-area processability is critical for the adoption of any novel material in integrated circuit (IC) manufacturing. The CF4 plasma fluorination method employed for fluorographene synthesis is highly compatible with standard CMOS processes. The insertion of a filter to mitigate high-energy plasma damage ensures the preservation of structural integrity and electronic properties over wafer-scale areas.
Moreover, the direct use of CVD-grown graphene as a substrate enables wafer-level synthesis of fluorinated layers without the need for transfer or seed layer deposition. This minimizes contamination and reduces fabrication complexity, thereby facilitating seamless integration into existing semiconductor workflows. The scalability and uniformity of the process make fluorographene a strong candidate for next-generation electronics, particularly in applications requiring miniaturization and high-density integration.
Table 1: Comparative Properties of Dielectric Materials
| Property | SiO2 | Al2O3 | GO | Fluorinated Graphene |
| Dielectric Constant (k) | ~3.9 | ~9 | ~2–4 | ~1.2 |
| Breakdown Field (MV/cm) | ~10 | ~6–8 | ~2–4 | >10 |
| Carrier Mobility Impact | High | Moderate | Low | Very Low |
| Thermal Stability (°C) | >400 | >400 | <200 | ≥400 |
| Process Compatibility | CMOS | ALD | Moderate | Excellent |
What Are the Challenges and Future Perspectives?
Despite its promising properties, fluorinated graphene faces several challenges before it can be fully commercialized. Precise control over fluorination levels is essential, as excessive or uneven fluorination can result in degraded device performance. Additionally, understanding the long-term stability of fluorographene under electrical stress and thermal cycling remains an active area of research.
Another critical hurdle is the seamless integration of fluorographene-based heterojunctions with metal contacts and other 2D materials. As device dimensions continue to shrink, the ability to engineer band structures and interfacial properties at the atomic scale will become increasingly important. Advances in nanoscale patterning techniques, such as probe lithography and selective area functionalization, may play a vital role in overcoming these limitations.
FAQs About Fluorinated Graphene
Q1: What makes fluorinated graphene different from graphene oxide as a dielectric?
Fluorinated graphene has superior thermal stability and a higher breakdown electric field than graphene oxide. It also maintains a lower dielectric constant and exhibits better compatibility with semiconductor processing.
Q2: Can fluorinated graphene be used in flexible electronics?
Yes, due to its mechanical strength and thin-film form factor, fluorinated graphene is suitable for flexible and wearable electronic applications.
Q3: How is the dielectric constant of fluorinated graphene so low?
The low dielectric constant (~1.2) arises from the strong covalent bonding and limited polarizability of the carbon-fluorine structure, which reduces capacitive coupling in devices.
Q4: Is fluorinated graphene scalable for industrial applications?
Yes, the CF4 plasma fluorination technique is compatible with CMOS technology and allows for uniform large-area processing, making it viable for industrial-scale device fabrication.
Q5: What devices benefit most from using fluorinated graphene?
A: Fluorinated graphene is particularly advantageous in high-performance FET), resistive memory (RRAM), and heterojunction-based nanoelectronics that require ultra-thin, high-resistance gate dielectrics.
