A Comprehensive Scientific Review on Fluorinated Ethers in Energy, Pharmaceuticals, and Materials

What Are Fluorinated Ethers?

Fluorinated ethers are a class of organofluorine compounds characterized by the presence of one or more fluorine atoms bonded to carbon atoms in molecules containing an ether linkage (C-O-C). Structurally, these compounds range from partially fluorinated to fully perfluorinated derivatives, with representative examples including perfluoroalkyl ethers such as CF₃-CF₂-O-CF₂-CF₃, and partially fluorinated ethers like CF₃-CF₂-O-CH₂-CH₃. The presence of fluorine atoms enhances thermal stability and chemical resistance along with oxidative durability because of their high electronegativity and robust C-F bonds. The presence of fluorine atoms within the ether molecule determines its polarity levels while influencing its hydrophobic nature and structural rigidity.

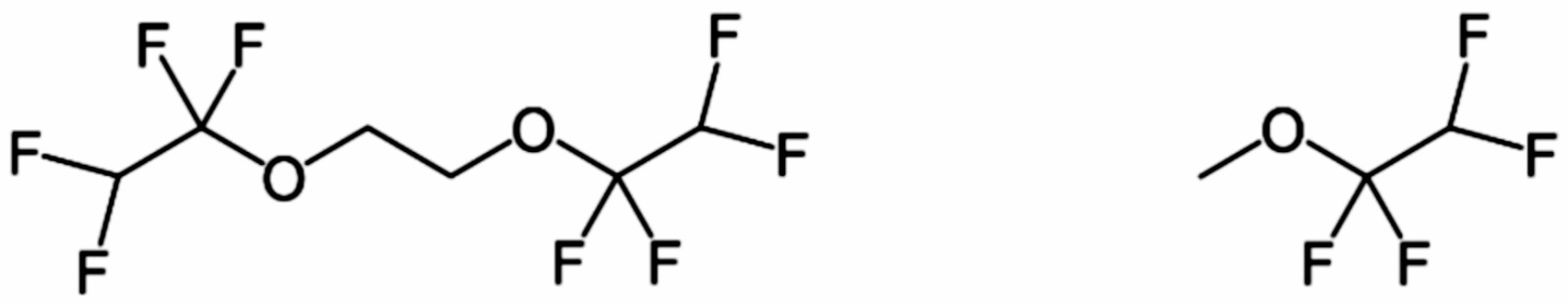

Fig.1 Chemical structures of the fluorinated ethers. Left: 1,1,2,2‐tetrafluoroethoxy)ethane (TFEE), right: 1,1,2,2‐tetrafluoroethylmethyl ether (TFEME)^[1].

Fluorine presence decreases polarizability and intermolecular interactions, which results in reduced surface energy and enhanced gas solubility. Fluorinated ethers demonstrate enhanced volatility together with reduced viscosity and superior stability when exposed to challenging environments. The properties become especially apparent in fully fluorinated ethers because they show extreme chemical inertness, but partially fluorinated ethers effectively balance between fluorophilicity and polarity which enhances solubility and compatibility with both polar and non-polar systems.

How Do Molecular Characteristics Determine Their Physical and Electrochemical Behavior?

The unique physical and electrochemical properties of fluorinated ethers depend on how much fluorine they contain and their molecular structure and functional group arrangement. Fluorinated ethers such as 1,1,2,2,3,3,4,4,5,5,6,6,7,7,7-heptadecafluoroheptyl ether show higher molecular weights and densities compared to hydrocarbon ethers, with this compound having a molecular weight of 448.56 g/mol. The boiling points of fluorinated ethers show significant variation from -22°C to 178°C based on molecular flexibility combined with chain length and fluorination levels.

Fluorinated ethers prove to be outstanding solvent choices in battery technology applications through electrochemical performance. Their high anodic stability, with oxidative decomposition potentials reaching 5.0 V vs. Li/Li⁺, makes them ideal co-solvents for lithium metal and high-voltage cathode chemistries. For instance, the partially fluorinated linear ether bis(2-fluoroethoxy)methane sustains excellent ionic conductivity and lithium-ion transport number when tested below freezing temperatures. The reduced ion conductivity of fully fluorinated ethers stems from their limited solvation capacity, which can nevertheless be overcome by molecular design strategies that introduce ether segments or hydrocarbon tethers to enhance lithium salt solubility.

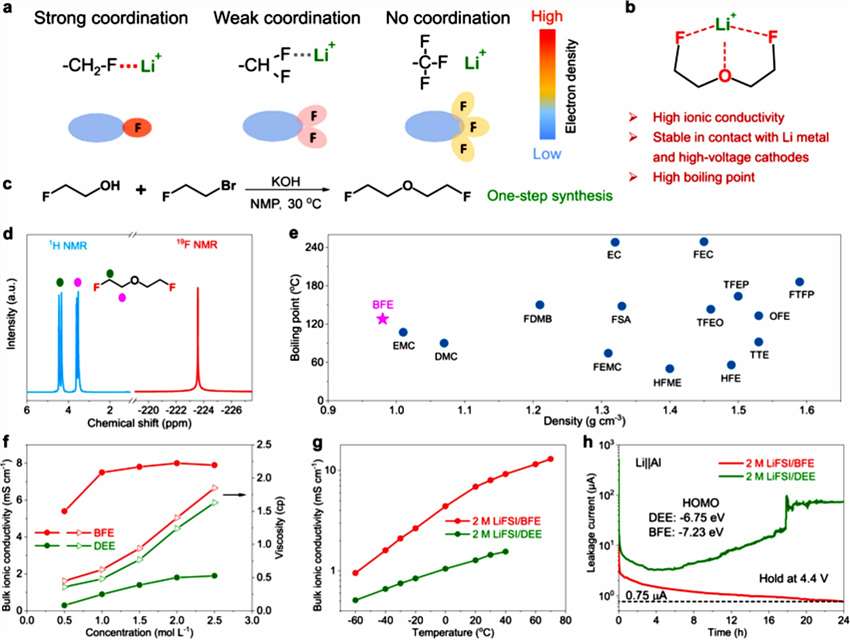

Fig.2 Physicochemical and electrochemical characterizations of the monofluoride ether-based electrolyte with tridentate coordination chemistry^[2].

Their refractive indices, dielectric constants, and thermal properties, such as bond dissociation energies, are highly tunable. The location of fluorine atoms impacts thermodynamic properties, as shown by CF₃CH₂OH which displays a bond dissociation energy of 212.7 kcal/mol, indicating strong C-F bond stability next to electron-donating or withdrawing groups.

How Are Fluorinated Ethers Synthesized?

Three main synthetic strategies dominate the production of fluorinated ethers, each with distinct advantages and limitations.

Method	Description	Advantages	Challenges
Williamson Ether Synthesis	Nucleophilic substitution of fluorinated alcoholates with alkyl halides	Suitable for defined structures and scalable production	Sensitive to base/catalyst choice and temperature
Radical Addition to Fluoroolefins	Radical-mediated addition of fluorinated alcohols to fluoroalkenes or alkynes	Enables diverse structures; tolerates functional groups	Requires optimization of initiators (e.g., AIBN) and solvents
Electrochemical Fluorination (ECF)	Perfluorination of hydrocarbon ethers in anhydrous HF	Generates fully fluorinated ethers with unique properties	Side reactions, C-O bond cleavage; improved by tertiary amine additives

The Williamson synthesis frequently uses sodium 2,2,2-trifluoroethoxide, which reacts with methyl iodide in a basic environment to produce methyl trifluoroethyl ether. Radical addition reactions, exemplified by the addition of 2,2,2-trifluoroethanol to tetrafluoroethylene, allow incorporation of electron-deficient fluoroalkenes into ether frameworks. Electrochemical fluorination is significant for industrial applications but requires precise control because it produces multiple products when technically demanding.

What Are the Key Applications of Fluorinated Ethers?

Lithium Battery Electrolytes

Fluorinated ethers are prominent in next-generation lithium-ion and lithium metal battery systems. Their low viscosity and high oxidative stability are instrumental in extending battery life and safety. Compounds like 1,1,2,2-tetrafluoroethyl-2,2,3,3-tetrafluoropropyl ether (TTE) and 1,1,2,2-trifluoroethyl-2,2,3,3-tetrafluoropropyl ether (TFE) are widely studied for their ability to form robust LiF-rich SEI (solid electrolyte interphase) layers, especially when used in conjunction with fluorinated esters such as fluoroethylene carbonate (FEC). These combinations result in high cycling performance (e.g., >83% capacity retention after 500 cycles) and elevated electrochemical windows.

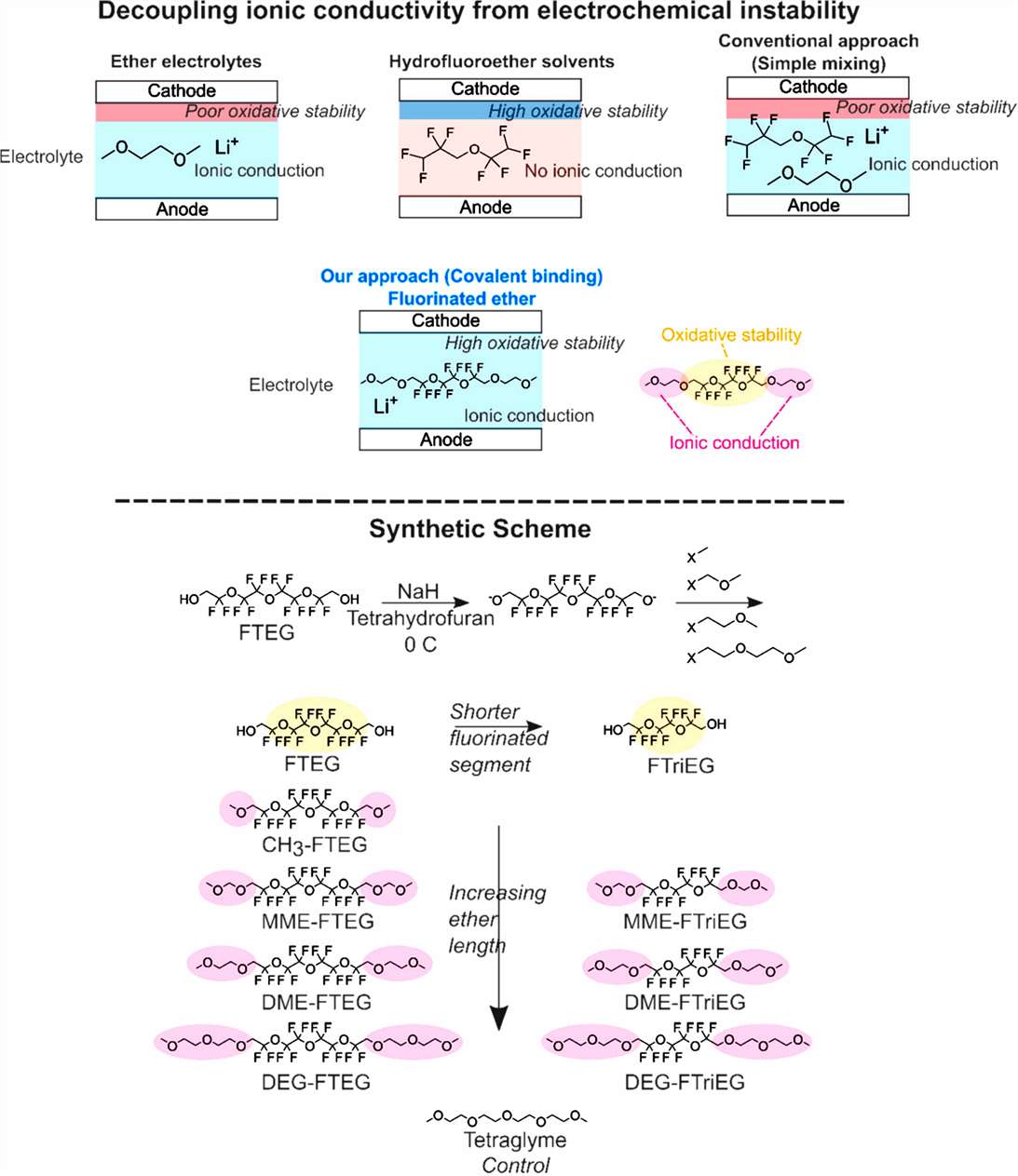

Fig.3 Hydrofluoroethers such as 1,1,2,2-tetrafluoroethyl-2,2,3,3-tetrafluoropropylether (TTE) and bis(2,2,2-trifluoroethyl) ether (BTFE) have found great use in lithium metal batteries as diluents for solvent-in-salt electrolytes^[3].

Pharmaceutical Development and Anesthetics

In medicinal chemistry, fluorinated ethers serve both as active pharmaceutical ingredients (APIs) and as functional moieties to optimize drug profiles. For example, Sevoflurane (CF₃CHFOCH₂F) is a widely used inhalation anesthetic known for its rapid onset, minimal metabolism, and reduced cardiovascular effects. The trifluoromethoxy group (-OCF₃) enhances lipophilicity and metabolic resistance in several drug scaffolds, such as fluoxetine, thus improving bioavailability and therapeutic index.

Environmentally Safer Industrial Fluids and Coatings

Owing to their low global warming potential (GWP) and zero ozone depletion potential (ODP), fluorinated ethers are increasingly favored as alternatives to traditional halocarbons. HFE-347mcf, for instance, is a commercial fluorinated ether used in polyurethane foams and thermal management fluids. Their low surface energy and chemical inertness also make them ideal components in anti-fouling and moisture-barrier coatings, particularly those derived from perfluoropolyethers (PFPEs) like bis(1,1,2,2-tetrahydroperfluorooctyl) ether, used extensively in microelectronics and optics.

How Are Structural Features of Fluorinated Ethers Characterized?

Specialized analytical techniques are used to reveal the structural and electronic characteristics of fluorinated ethers. NMR spectroscopy, particularly ¹⁹F-NMR, provides detailed data about fluorine atom locations and coupling patterns while revealing how close these atoms are to electron-rich or electron-deficient regions. Terminal CF₃ groups exhibit resonance frequency changes that depend strongly on their spatial distance from ether oxygen atoms. Refractive index measurements together with densitometry reveal important information about compound purity and physical consistency, but mass spectrometry and IR spectroscopy serve to confirm structure and track synthesis progress.

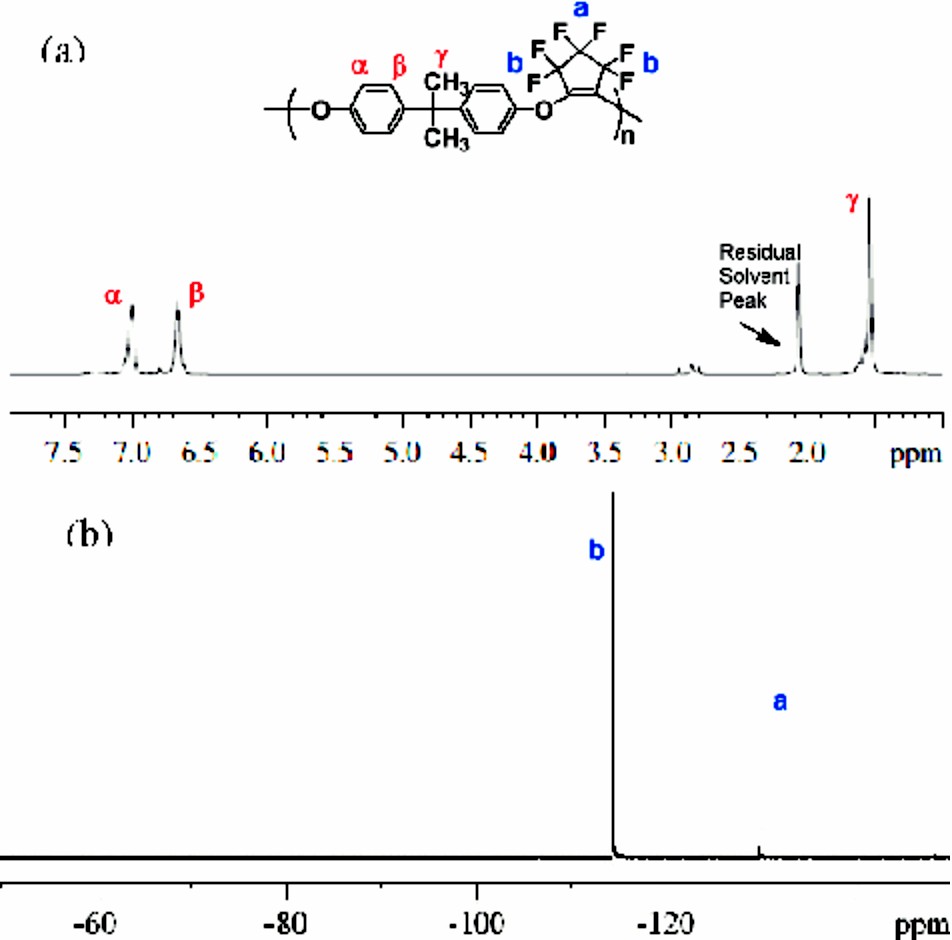

Fig.4 (a) ¹H NMR and (b) ¹⁹F NMR of perfluorocyclopentenyl (PFCP) aryl ether homopolymer P2^[4].

FAQs about Fluorinated Ethers

Q1: What makes fluorinated ethers suitable for lithium battery applications?

A: Their high oxidative stability, low viscosity, and ability to form stable SEI layers enable better cycling performance and safer operation in lithium metal batteries.

Q2: Are fluorinated ethers environmentally safe?

A: Many fluorinated ethers, particularly hydrofluoroethers (HFEs), have low global warming and ozone depletion potentials, making them safer alternatives to traditional fluorocarbons.

Q3: How does fluorination affect ether solubility?

A: Partial fluorination tends to increase solubility in polar media, while full fluorination often reduces solubility due to decreased polarity and increased hydrophobicity.

Q4: Why are trifluoromethoxy groups important in drug design?

A: The -OCF3 group enhances lipophilicity, metabolic stability, and binding affinity of drug molecules, often leading to improved pharmacokinetics.

Q5: Can fluorinated ethers be used in coatings or electronic applications?

A: Yes. Their chemical inertness, low surface energy, and thermal stability make them ideal for anti-corrosion coatings and electronic encapsulants.

Q6: What are the common synthetic challenges in producing fluorinated ethers?

A: Challenges include controlling side reactions in electrochemical fluorination, optimizing yields in radical additions, and handling sensitive reagents.

Alfa Chemistry offers a wide portfolio of high-purity fluorinated ethers tailored for such demanding applications, from battery-grade solvents to specialty fluorinated intermediates for drug synthesis.

References

1. Bouchal R., et al. (2020). "Monitoring Polysulfide Solubility and Diffusion in Fluorinated Ether‐Based Electrolytes by Operando Raman Spectroscopy." Batteries & Supercaps. 3, 397-401.
2. Cheng X., et al. (2023). "In situ Synthesis of Gel Polymer Electrolytes for Lithium Batteries." Lithium Batteries. 6(6), e202300057.
3. Amanchukwu C. V., et al. (2020). "A New Class of Ionically Conducting Fluorinated Ether Electrolytes with High Electrochemical Stability." J. Am. Chem. Soc. 142(16), 7393-7403.
4. Cracowski J-M., et al. (2012). "Perfluorocyclopentenyl (PFCP) Aryl Ether Polymers via Polycondensation of Octafluorocyclopentene with Bisphenols." Macromolecules. 45(2), 766-771.
