Understanding Disperse Dyes: Mechanisms, Applications, and Innovation in Synthetic Textile Chemistry
What Are Disperse Dyes?
Disperse dyes are a class of non-ionic, sparingly water-soluble dyes specifically engineered for the coloration of hydrophobic synthetic fibers such as polyester, nylon, cellulose acetate, and polyamide. The dyeing mechanism of these dyes functions through molecular dispersion instead of solubility. Due to their low aqueous solubility, disperse dyes are applied in finely divided, dispersed form using surfactants or dispersing agents. When synthetic fibers are heated under pressure, the dye molecules migrate into their amorphous regions, where they establish van der Waals forces and hydrophobic bonds with polymer chains. The mechanism provides thermoplastic textiles with enhanced substantivity and fastness characteristics.
Table 1: Classification and performance classification of disperse dyes
| Chemical Structure Classification | Application Performance Classification |
|---|---|
|
|
The effectiveness of disperse dye uptake relies on dye molecular size combined with the fiber's crystallinity alongside its glass transition temperature (Tg) and the efficiency of the dispersing system. Pressurized polyester fibers heated to between 120 and 130°C experience enhanced motion that promotes thorough dye penetration. Fickian diffusion models explain the dyeing kinetics as they primarily depend on the migration rate of dye from the textile surface into the fiber interior. The disperse dye application requires precise dye bath formulation and thermomechanical processes to ensure strong dye-fiber bonds and uniform color distribution.
Alfa Chemistry offers a wide range of disperse dyes that are synthesized in a process that strictly controls purity, particle size distribution and dispersion. Please click to view our complete product line.
High Wet Fastness Disperse Dyes
Super High Wet Fastness Disperse Dyes
Alkali Resistant Disperse Dyes
Environment-friendly Disperse Dyes
High Wash Fastness Disperse Dyes
How Are Disperse Dyes Synthesized?
Disperse dyes are primarily synthesized through azo coupling and anthraquinone-based pathways. Azo dyes dominate the category due to their structural diversity and vivid chromatic range. The synthetic route typically involves diazotization of an aromatic amine followed by coupling with a suitable coupling component such as acetoacetanilide or N-substituted anilines. The resulting hydrophobic azo compound exhibits tailored light absorption properties due to conjugated π-electron systems and electron-donating/withdrawing substituents that fine-tune the dye's hue and stability.
Anthraquinone-based disperse dyes, on the other hand, are synthesized through Friedel-Crafts acylation and subsequent substitution or reduction steps. These compounds provide superior lightfastness and are preferred for deep shades, such as navy blue and black. Other synthetic classes include nitroarylamine derivatives, styryl dyes, and coumarin systems, each offering specific spectral and fastness characteristics.

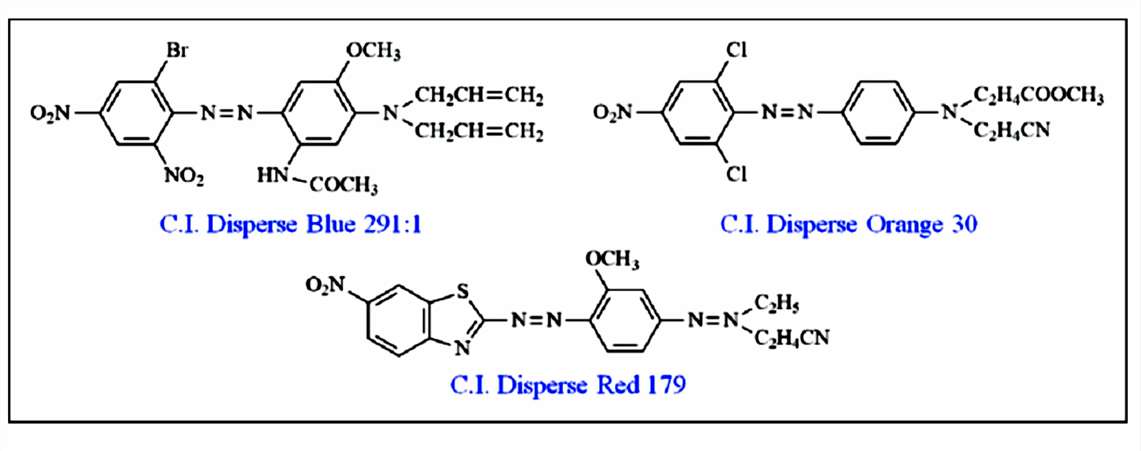

Fig.1 Chemical structure of disperse dyes[1].
Comparison of Typical Dyeing Processes
Alfa Chemistry has summarized the advantages and disadvantages of three dyeing processes for reference.
| Dyeing Method | Description | Temperature Range | Advantages | Disadvantages |
|---|---|---|---|---|
| Thermo dyeing process | Polyester and blended fabrics are immersed in disperse dye solution and heat-fixed in 170–224 °C hot air for continuous dyeing. | 180–220°C | Rapid dyeing, bright color, no need for carrier, high dye utilization | Requires special equipment, sublimation risk, high cost |
| High temperature dyeing method | Raising the dye bath temperature accelerates dye diffusion into fibers for rapid coloration. | ≥130°C | Suitable for batch dyeing, uniform dyeing | Requires high temperature and high pressure equipment |
| Carrier dyeing method | Uses a carrier additive to enhance dye penetration into polyester fibers, especially under atmospheric pressure. | 80–100°C | Can be operated at normal pressure, simple equipment, suitable for small and medium-scale dyeing | Uses organic carrier, high environmental pressure |
What Are the Primary Applications of Disperse Dyes?
Disperse dyes are predominantly used in the dyeing and printing of synthetic fibers, with polyester being the most significant substrate due to its vast global production. The dyeing process can be conducted using batch (exhaust dyeing), continuous (pad-heat or pad-dry-thermosol), or printing methods. During exhaust dyeing, the dye molecules bind to the fiber surface before diffusing into the fiber at high temperatures under pressurized conditions or with the help of carriers.
The thermosol dyeing method stands as a primary technique in continuous dyeing operations by fixing disperse dyes onto polyester fabrics utilizing dry heat ranging from 180–210°C while avoiding water usage and thereby promoting sustainable manufacturing practices. Sublimation transfer printing requires disperse dyes, which are initially applied to transfer paper before being moved to polyester substrates through heat transfer. This technique produces textile prints with high-definition and photographic-quality results.

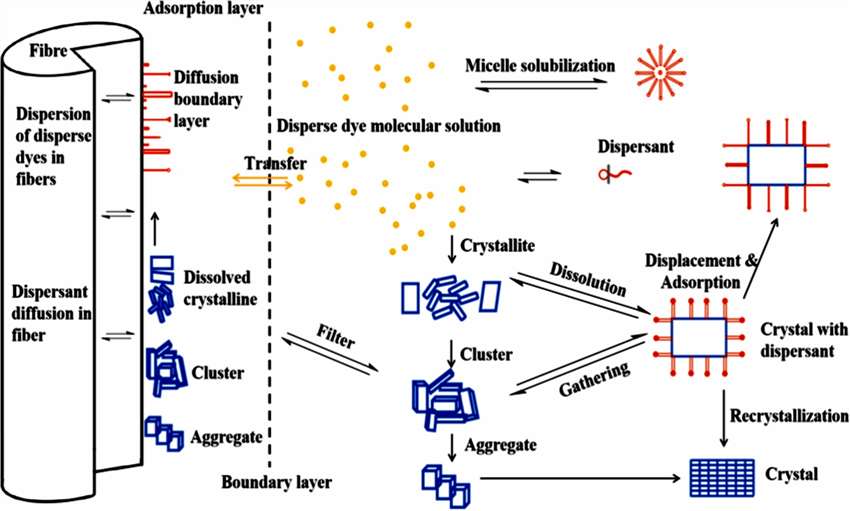

Fig.2 The dyeing process of disperse dye with the help of dispersant[2].
In addition to textiles, disperse dyes find niche applications in plastics, inks, and nonwoven materials where their heat stability and hydrophobic characteristics are desirable. The ability of these dyes to work with thermoplastic polymers enables color application during extrusion and molding processes, which enhances both the functionality and appearance of polymeric materials.
How Is Disperse Dye Performance Evaluated?
The performance of disperse dyes is assessed through rigorous testing for color fastness, shade reproducibility and dispersion stability. Lightfastness, washability and sublimation are critical, especially in automotive, sportswear and home textile applications. High-performance disperse dyes are carefully engineered to resist photodegradation, heat migration and detergent-induced color fading.
Of all the performance parameters, dispersion stability is particularly important. In response to the challenge of agglomeration, or settling of dye particles, which can lead to uneven dyeing, color spotting and equipment fouling, Alfa Chemistry offers pre-dispersed dye systems with highly effective dispersant products. These dispersants maintain excellent colloidal stability under high shear rate and thermal stress conditions, effectively inhibiting particle aggregation and improving bath uniformity.
At the same time, by controlling the particle size distribution (typically 0.2-1.5 microns), better fiber permeability and color depth consistency can be achieved. Our dispersant solutions not only optimize particle distribution but also enhance the affinity between dyes and polyester fibers, resulting in higher uptake and dyeing efficiency.
Additionally, spectrophotometric and Kubelka-Munk function modeling accurately quantifies dye pick-up behavior and shade prediction. Such analyses are essential for dye formulation optimization and quality control in large-scale dyeing and finishing.
What Role Do Environmental and Regulatory Concerns Play?
Environmental and regulatory scrutiny of synthetic dyes has driven the development of environmentally friendly disperse dye formulations. Conventional disperse dyes may release residual carcinogenic amines when the azo bond is broken or may be less biodegradable. Alfa Chemistry offers environmentally compliant disperse dyes, ensuring that they are free of banned aromatic amines and heavy metals.
Efforts are also being made to reduce energy and water consumption in the dyeing process. Low-temperature disperse dyes can color fibers at temperatures as low as 95°C, reducing energy consumption and emissions. In addition, the use of high-absorbance dyes minimizes dye effluent in wastewater, supporting closed-loop processes and sustainable textile dyeing practices. Innovations in encapsulation and nano-dispersion further improve dye fixation efficiency and reduce the need for chemical additives.
What Are the Key Advantages and Limitations of Disperse Dyes?
| Advantages | Limitations |
|---|---|
| Excellent dyeing affinity for synthetic fibers | Limited solubility in water |
| High sublimation and light fastness | Requires high-temperature dyeing or carriers |
| Vibrant, wide-ranging chromatic palette | Possible environmental impact from synthetic residues |
| Compatibility with thermosol and sublimation print | Limited to hydrophobic fiber types |
| Potential for eco-formulation and low-water usage | Complex synthesis and dispersion stabilization required |
FAQs About Disperse Dyes
Q: Why are disperse dyes mainly used for polyester?
Because polyester is hydrophobic and lacks reactive sites for ionic dyes, disperse dyes, which are nonionic and hydrophobic, diffuse effectively into the fiber matrix at elevated temperatures.
Q: Can disperse dyes be used for cotton fabrics?
No. Disperse dyes have very low affinity for hydrophilic fibers like cotton. Reactive or direct dyes are preferred for cotton.
Q: What temperature is required for disperse dyeing?
Typically, 120–130°C under pressure for exhaust dyeing. For thermosol processes, dry heat at 180–210°C is used.
Q: Are disperse dyes environmentally safe?
Modern disperse dyes, such as those offered by Alfa Chemistry, are formulated to meet international safety standards, minimizing toxic aromatic amines and supporting eco-friendly dyeing.
Q: What causes poor colorfastness with disperse dyes?
Poor fastness may result from inadequate dye-fiber fixation, improper dispersion, or suboptimal dyeing temperatures.
Q: Can disperse dyes be used in inkjet printing?
Yes. In digital textile printing, disperse dye inks are used for high-resolution prints on polyester fabrics, particularly in sublimation transfer techniques.
Q: What is the difference between low-energy and high-energy disperse dyes?
Low-energy dyes are suitable for low-temperature dyeing but may migrate under heat. High-energy dyes provide excellent sublimation and wash fastness but require higher temperatures to fix.
References
- Ai L., et al. (2021). "Ultralow emission micro-printing process for PET fibers using liquid disperse dye." Textile Research Journal. 92(5-6), 004051752110457.
- He J., et al. (2022). "Novel carboxylate comb‐like dispersant used in disperse dyes." Journal of Applied Polymer Science. 139(20), 52147.
